| 图博蜂窝板质量标准—PC |
| type | pc3.5(4.5)-90 | PC6-70 |
| color |
transparent/ white/grey /black |
transparent/ white/grey /black |
| cellcore diameter(mm) | ∮3.5 | ∮6s |
| capacity(Kg/m3 ) | 90-100 | 70-80 |
| compressive strength(MPa) | 2.4 | 1.4 |
| shear strength(MPa) | 0.6 | 0.6 |
| effective temperature(℃) | -40—+110 | -40—+110 |
| thermal condutivity(W/mk, 0℃) | 0.061 | 0.061 |
| thermal condutivity(W/mk,30℃) | 0.073 | 0.073 |
| 图博蜂窝板质量标准—PP |
| type | PP8-80 | PP12-70 |
| color | 白 | 白 |
| cellcore diameter(mm) | ∮8 | ∮12 |
| capacity(Kg/m3 ) | 80--90 | 70--80 |
| compressive strength(MPa) | 2.3 | 2.0 |
| shear strength(MPa) | 0.5 | 0.5 |
| effective temperature(℃) | -30--+80 | -30--+80 |
| thermal condutivity(W/mk,10℃) | 0.102 | 0.102 |
| 标准尺寸为1200*2400，其余尺寸可定做 | ||
| Qingdao-Tubus Honeycomb Co.,ltd is a Joint Venture between Swiss Tubus Bauer AG and Qingdao Building Material General Company. Qingdao-Tubus imports advanced production line from Germany, adopt Tubus technology to produce high-grade plastic honeycomb products based on the materials like Polypropylene or Polycarbonate. Our plastic honeycomb products can be widely used at many industries Applications because of their unique characters. More>> |
|

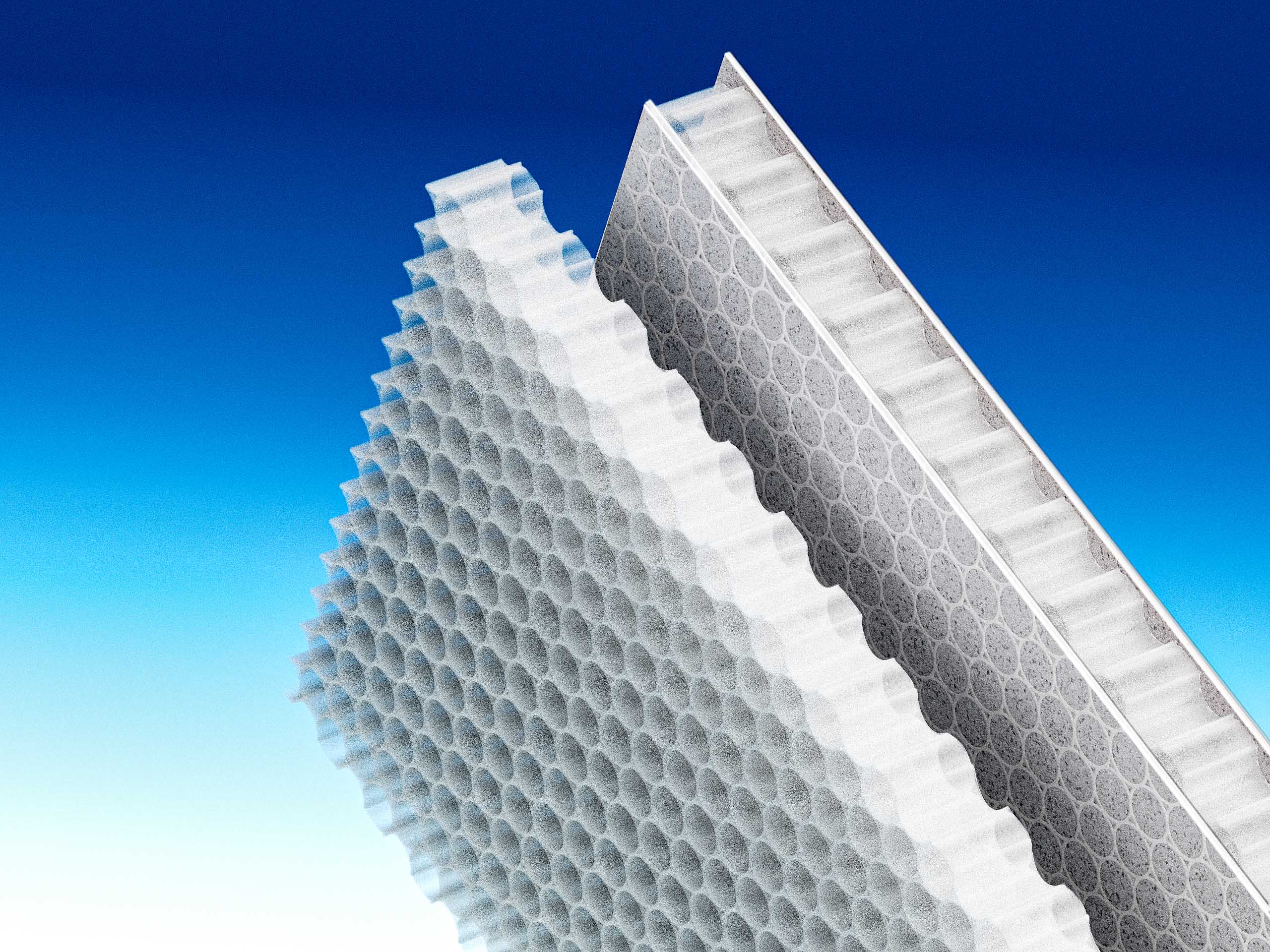

PP honeycomb :
Specification: PP8-80 (Cellcore diameter is 8mm,capacity is 80kg-90kg/m3)
PP12-70 ((Cellcore diameter is 12mm,capacity is 65kg-75kg/m3)

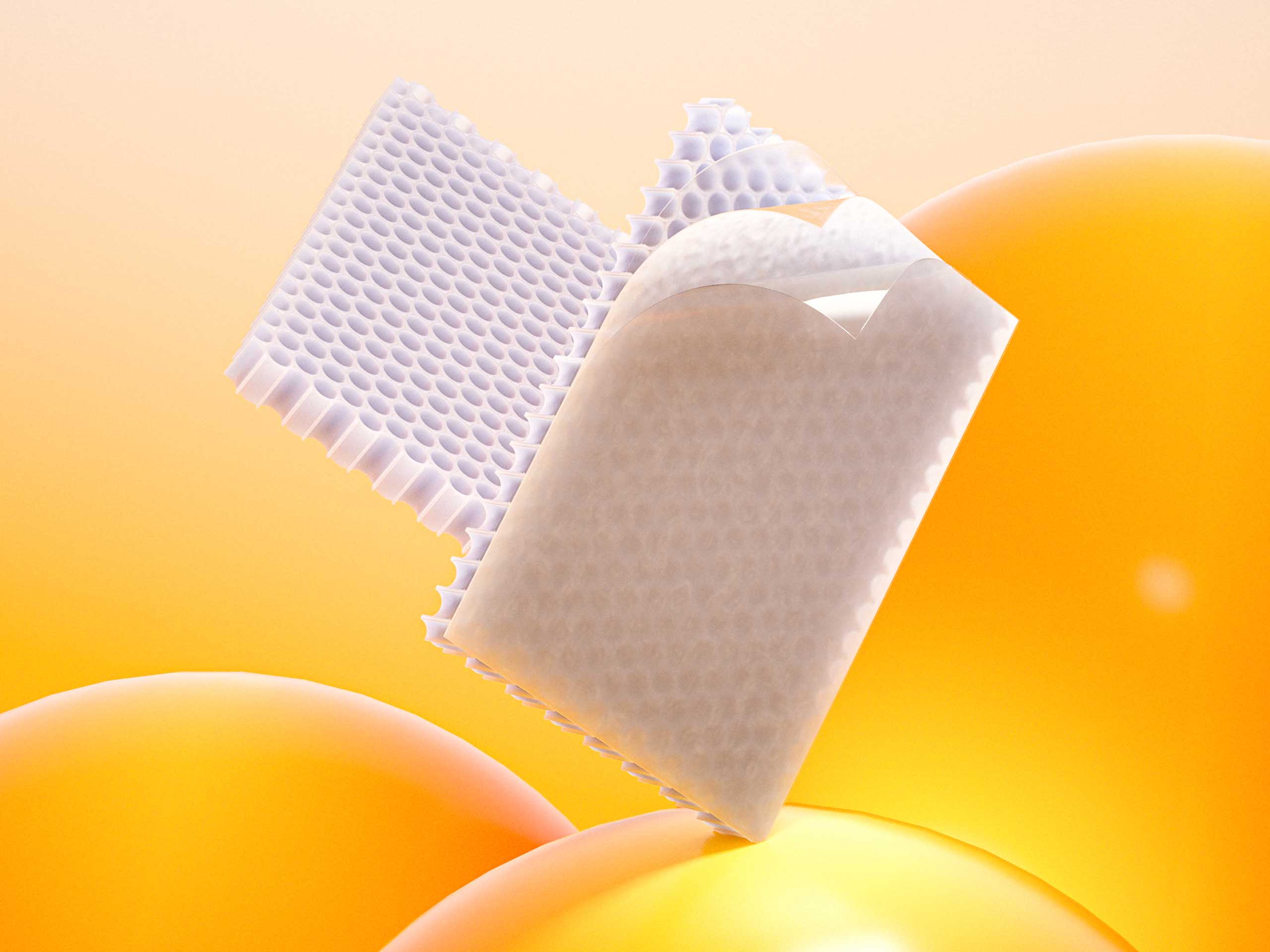

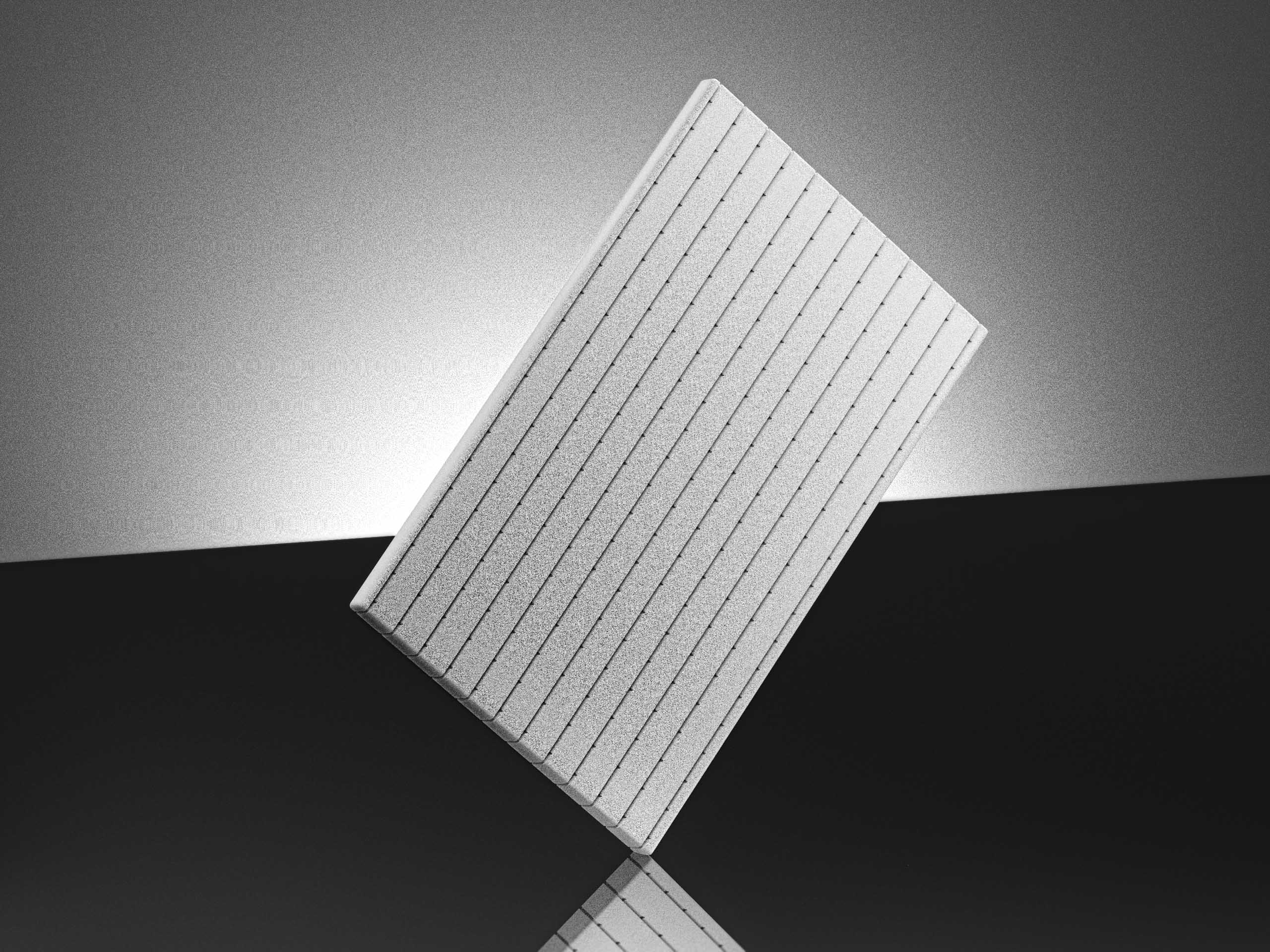

In order that clients can apply honeycomb to combine with different panels easily, on the both sides of honeycomb we can laminate kinds of non-woven fabric tissue.Now we can provide with PP8-80T30,PP8-80T30F,PP8-80T60,PP8-80T60F,PP12-70T30,PP12-70T30F,PP12-70T60,PP12-70T60F.

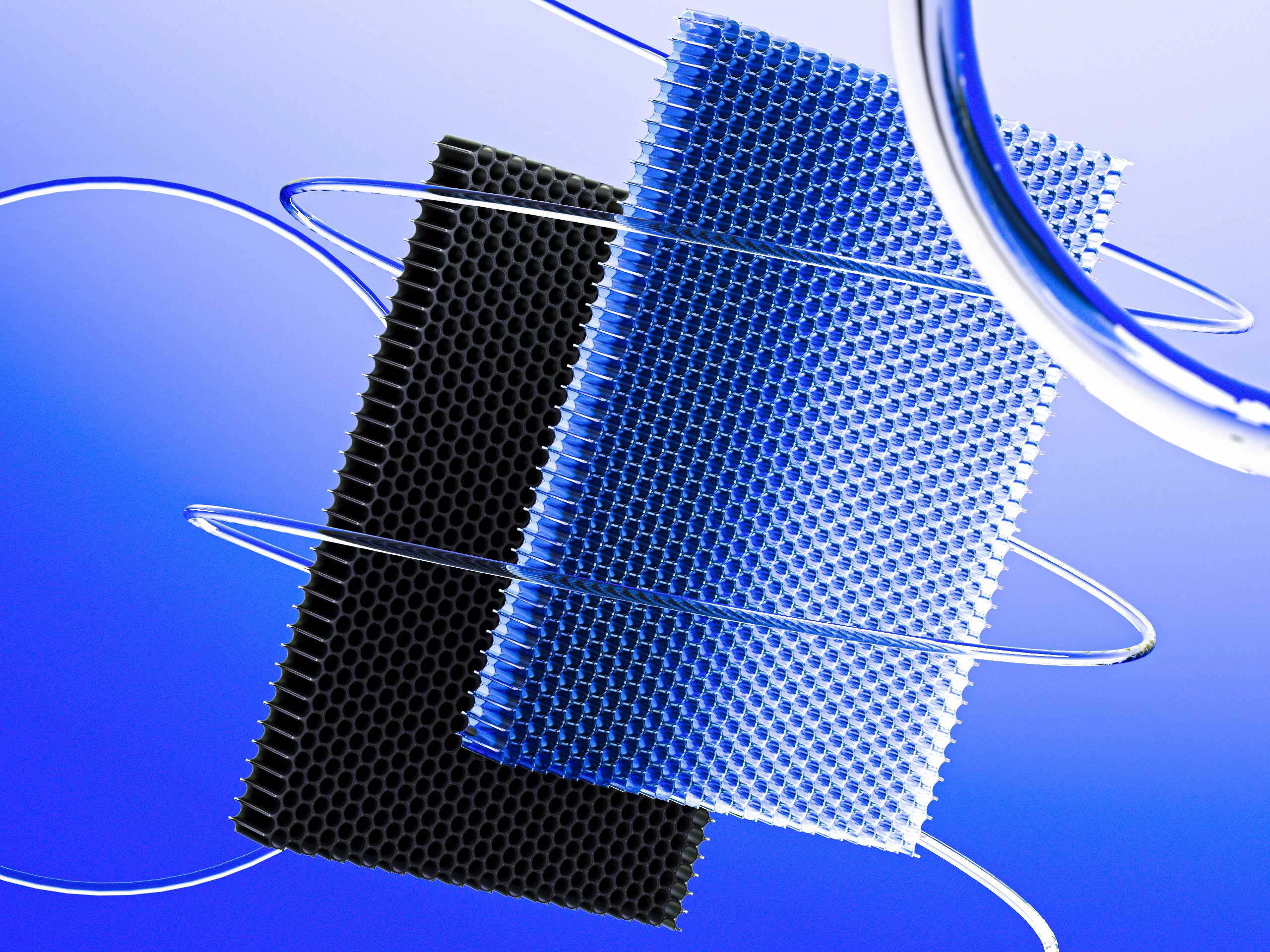

PC honeycomb:
PC have excellent compressive strength. We provide PC3.5-90 and PC6-70.
PC honeycomb have excellent properties like as following:
1. Cellcore uniformality,inside smoothness,cleanness,surface level off.
2.PC is safe for using as airflow in showcase.
3.lower shrink rate when temperature drop to -30 degree.
